Smart Parking
Sensor Technology

Industry-leading IoT parking sensors with 99%+ accuracy, designed for all weather conditions and urban environments.

Software Platform

Real-Time Parking
Guidance & Management.

A unified operations console for cities and operators — fees, snapshots, sessions, and live monitoring across every deployment, validated in 8 markets.

Urbaniq Operations Console
Live · Global
Fee amount / parking spaces
  • Total fees collected (USD)300M
  • Total data snapshots collected100M
  • Total number of carparks974
  • Total number of parking spaces135,000
  • Total number of vehicles served10,880,206
Payment methods
70.2%
Visa / Mastercard
26.5%
PayPal
2.4%
Contactless
1%
Apple Pay
Global Coverage · 21 Operating · 8 Trial
Drag · Scroll to rotate
Operating Trial
Real-time monitoring
CAM-01
● REC
Proof of concept & validation

Validated across multiple countries — performance proven under different market conditions, regulatory environments and user behaviors, ensuring scalability and robustness before wider rollout.

🇸🇬Singapore
🇲🇾Malaysia
🇹🇭Thailand
🇻🇳Vietnam
🇮🇩Indonesia
🇳🇱Netherlands
🇮🇹Italy
🇧🇷Brazil
User statistics
Total users0
2025-032025-052025-072025-092026-01
Session log
TimeLicenseGridAddress
2026-03-08 11:33:35NL-RB-**7X0L065Keizersgracht 42, Amsterdam, Netherlands
2026-02-08 17:33:18MI-TX-**08X0H067Via Monte Napoleone 8, Milan, Italy
2026-01-22 09:14:02SG-PL-**4X0S012Marina Boulevard 12, Singapore
Parking duration analysis
<1h1-2h2-3h3-4h>4h
Hardware Solutions

Three devices. One parking intelligence platform.

WEP-03

Low-Position Smart Parking Sensor

Next-generation ground sensor with wide-angle HD camera and ultrasonic/radar dual detection. Supports 4G/5G full-network communication with 180+ days battery life.

WEP-03

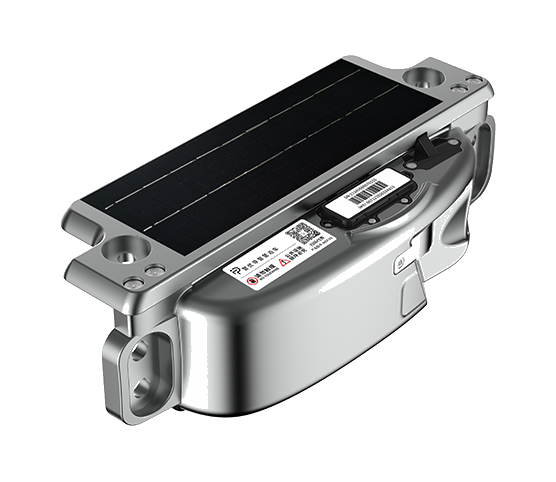

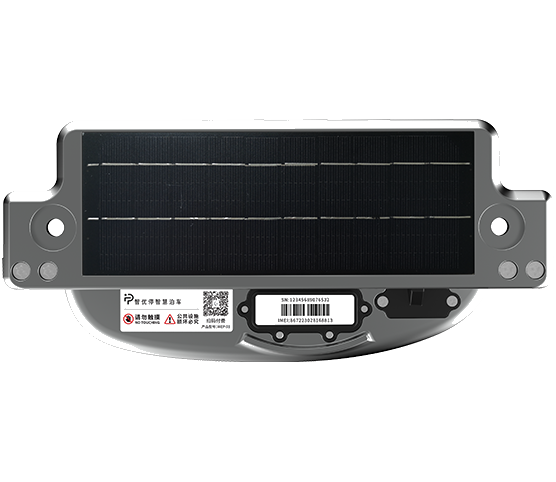

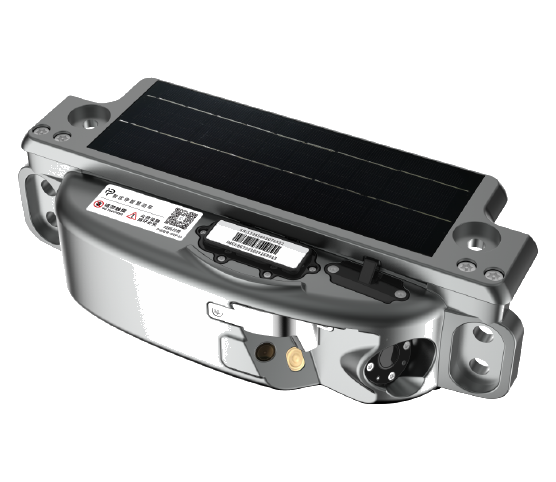

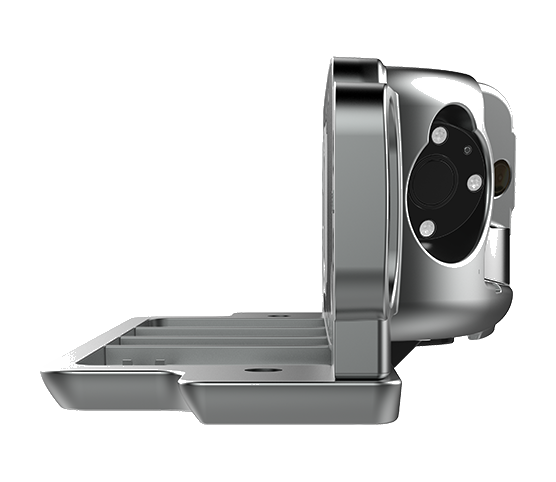

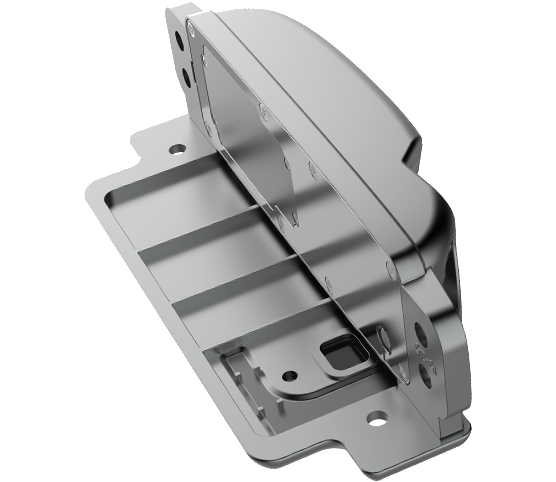

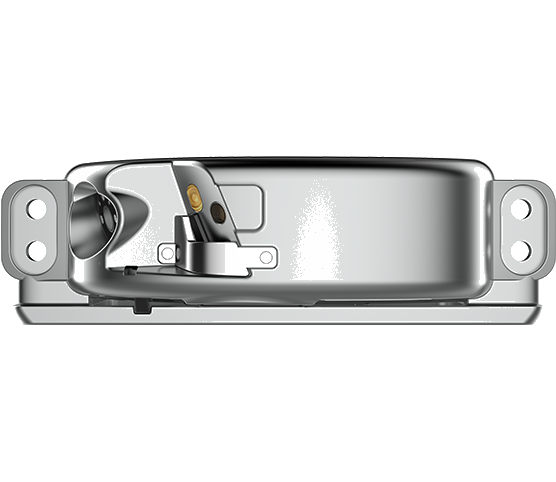

WEP-03 — Three-Quarter View · Solar ArrayWEP-03 — Top Profile · Mounting BracketsWEP-03 — Front · Sensor ApertureWEP-03 — Side · Camera Module DetailWEP-03 — Underside · Chassis & Base PlateWEP-03 — Top Down · Solar Panel & ID Label
01Three-Quarter View · Solar Array06

Next-generation ground sensor with wide-angle HD camera and ultrasonic/radar dual detection. Supports 4G/5G full-network communication with 180+ days battery life.

Wide-Angle HD Camera
1/2.8" CMOS 2MP Sensor
4G/5G Full-Network Support
Ultrasonic + Radar Detection
IP68 Protection Level
180+ Days Battery Life

Key Advantages

  • Dual recognition with camera and ultrasonic/radar
  • Real-time vehicle information detection
  • 8GB+ data storage for 10+ days
  • Fault self-diagnosis and remote upgrade

Technical Specifications

Model
WEP03
Image Sensor
1/2.8" CMOS 2MP
Communication
4G/5G Full-Network
Network Protocol
TCP/IP
Day Recognition
≥97%
Night Recognition
≥94%
Protection
≥IP68
Working Temp
-20°C to 60°C
Battery Life
≥180 days
Storage
≥8GB
Detection Method
Camera + Ultrasonic/Radar
Power Supply
Lithium Battery + Solar
WEP-02

Middle-Position Smart Parking Sensor

Middle-position smart parking sensor with 131° shooting angle, 2MP image sensor, ultrasonic feedback triggering, and mechanical arm wiper for automatic lens cleaning. Full metal body with IP68 protection.

WEP-02

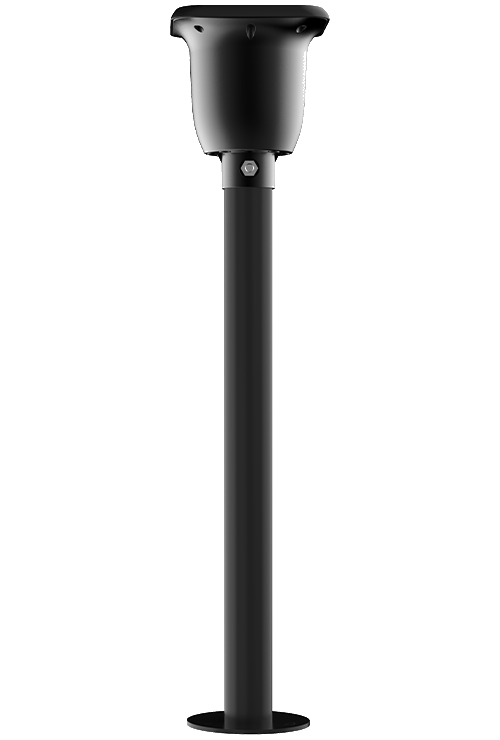

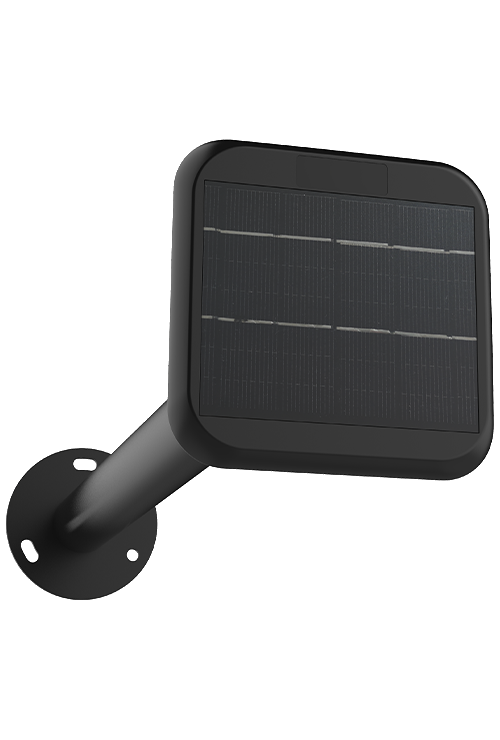

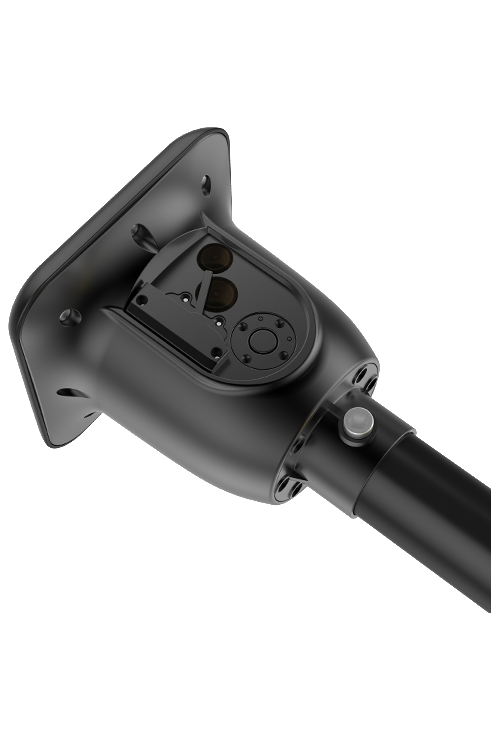

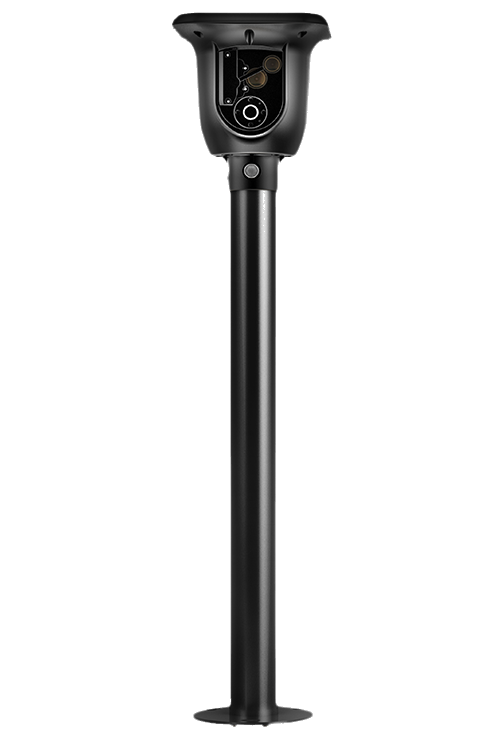

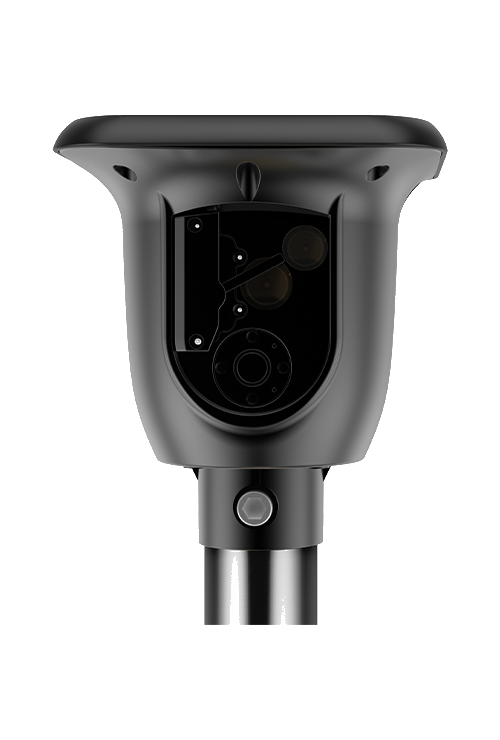

WEP-02 — Front · Pole MountWEP-02 — Open Housing · Internal ViewWEP-02 — Side Profile · Full AssemblyWEP-02 — Close-Up · Lens & Sensor ArrayWEP-02 — Underside · Mounting Plate Detail
01Front · Pole Mount05

Middle-position smart parking sensor with 131° shooting angle, 2MP image sensor, ultrasonic feedback triggering, and mechanical arm wiper for automatic lens cleaning. Full metal body with IP68 protection.

131° Shooting Angle Camera
2MP Image Sensor
Ultrasonic Feedback Triggering
Mechanical Arm Wiper
4G Network Transmission
IP68 Waterproof & Impact-Resistant
Day/Night Auto-Switch
Low-Light Night Capture

Key Advantages

  • Automatic lens cleaning with mechanical arm wiper
  • Full metal body with IP68 waterproof and impact-resistant protection
  • Abnormal capture alarm for vehicle over-positioning and non-motor vehicle occupation
  • Supports low-light night capture with automatic day/night mode switching
  • Remote management, remote upgrade, and factory reset support
  • License plate recognition rate >99% with embedded intelligent video analysis

Technical Specifications

Model
WEP02
Camera Angle
131°
Image Sensor
2MP
Recognition Rate
>99%
Transmission
4G Network
Protection
IP68
Working Temp
-20°C to 65°C
Humidity
10% - 90%
Altitude
Below 4,500m
Storage Temp
-30°C to 75°C
Power Supply
18650 Lithium + Solar
Configuration
One per parking space
WEP-16

Horizontal Smart Parking Sensor

Next-generation horizontal-mount smart parking sensor with professional-grade 1080p CMOS sensor, 160° wide-angle all-glass HD lens, and 52KHz ultrasonic vehicle detection. Built-in 4G network, solar charging, and automatic lens cleaning wiper — no wiring, no road breaking required.

WEP-16

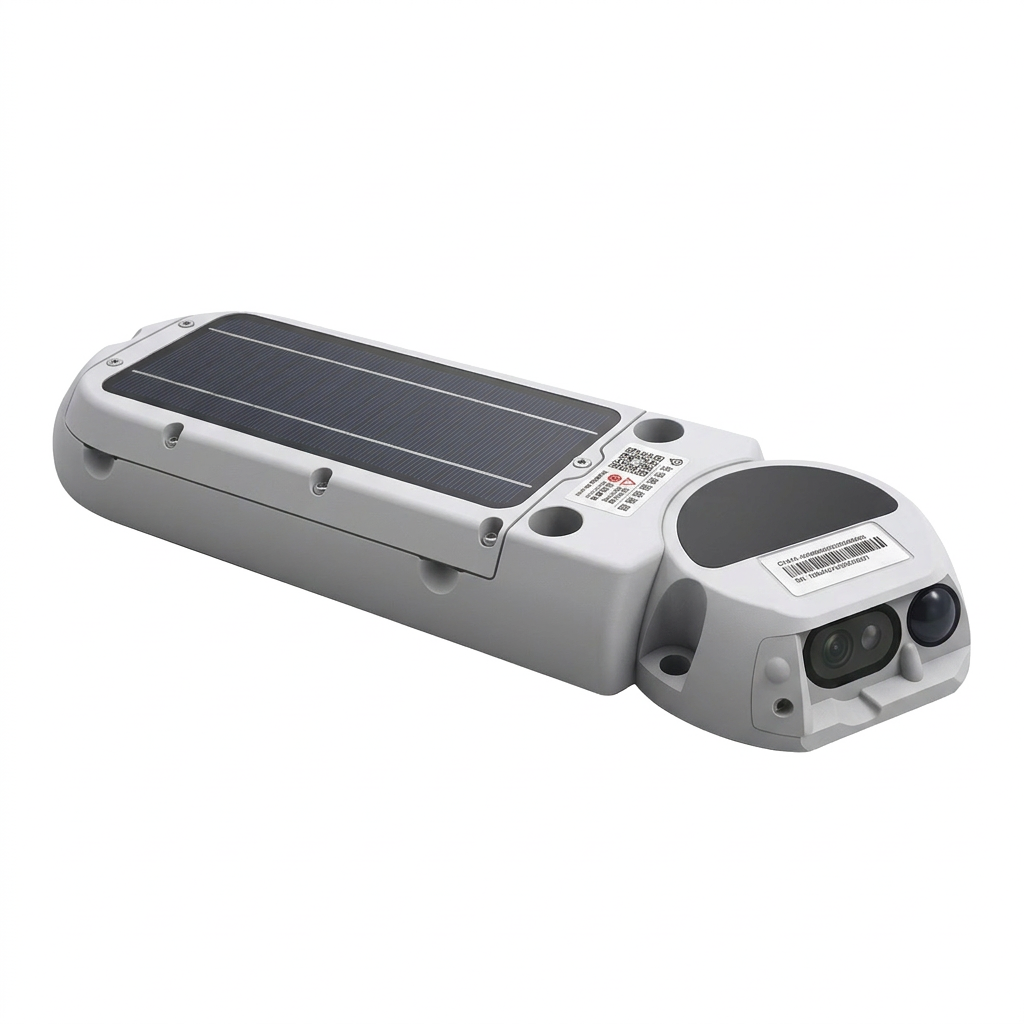

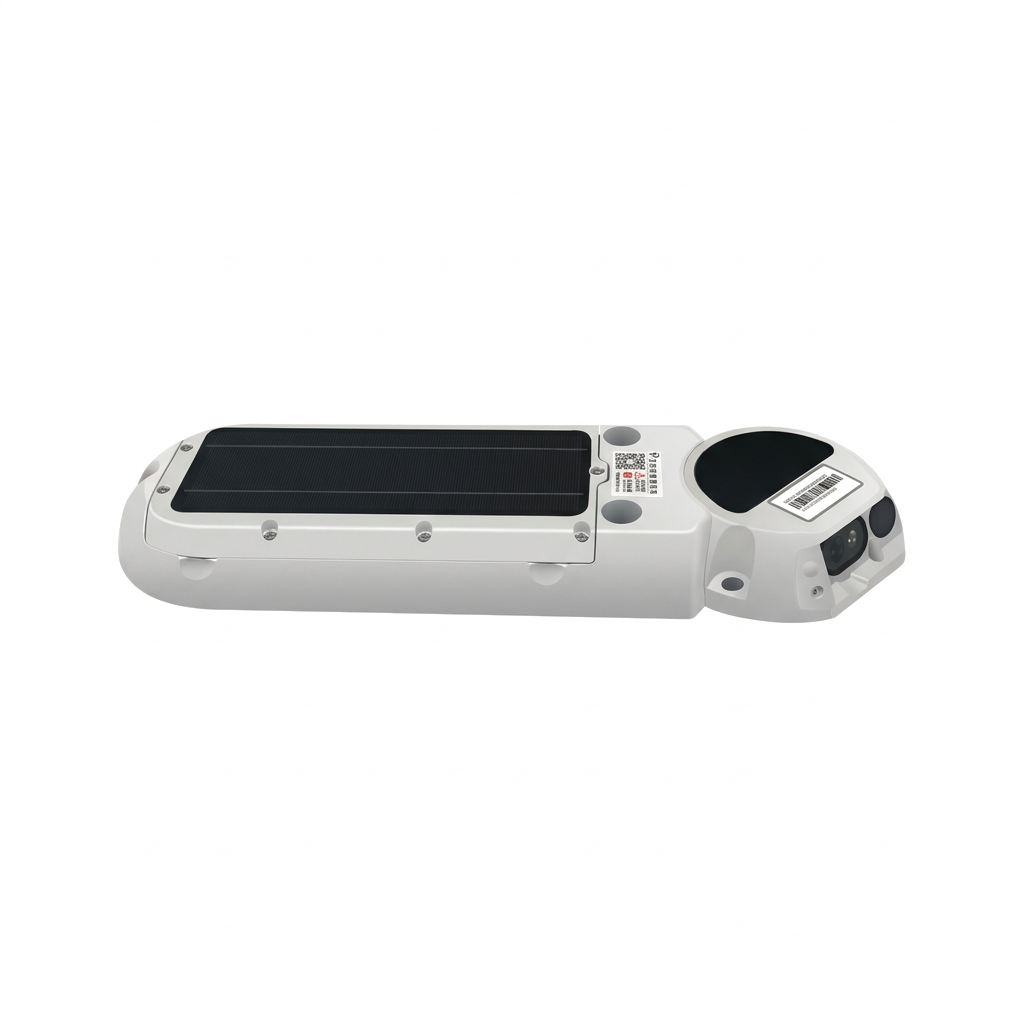

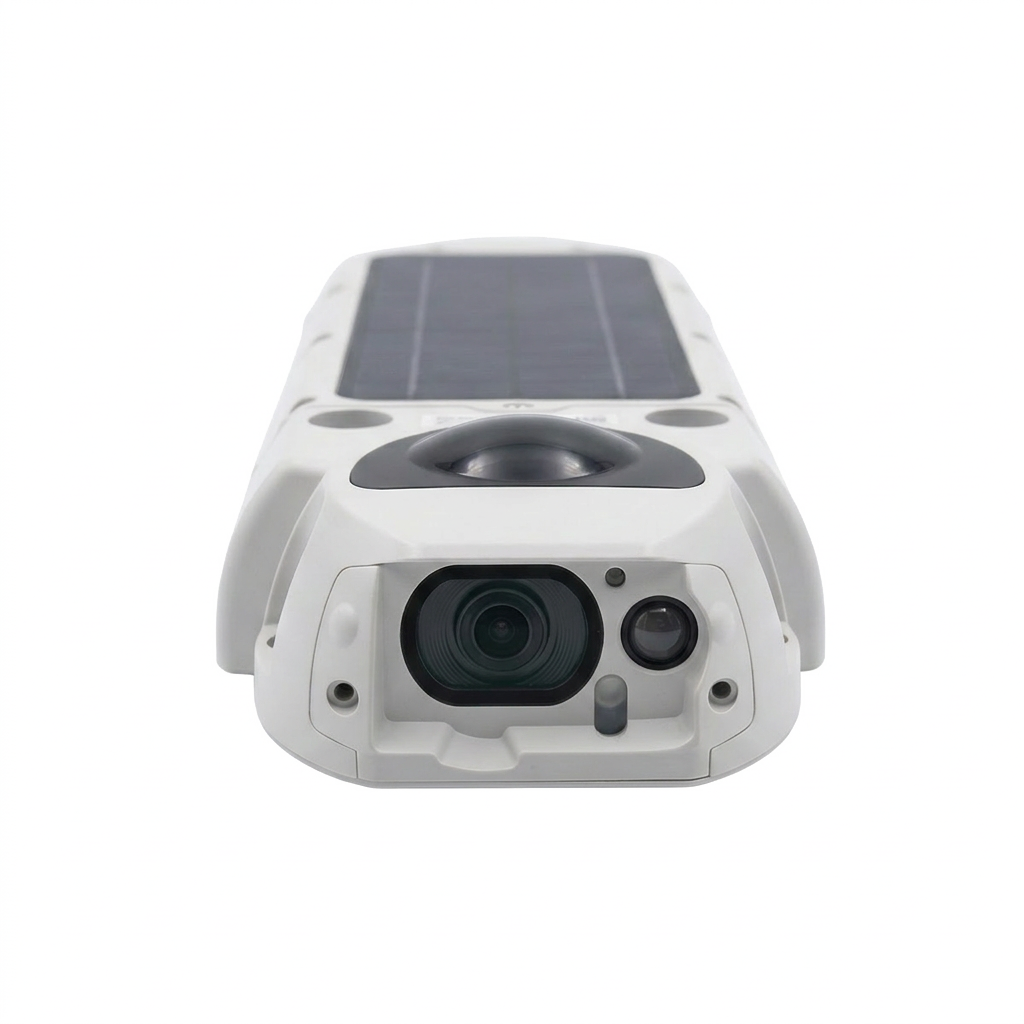

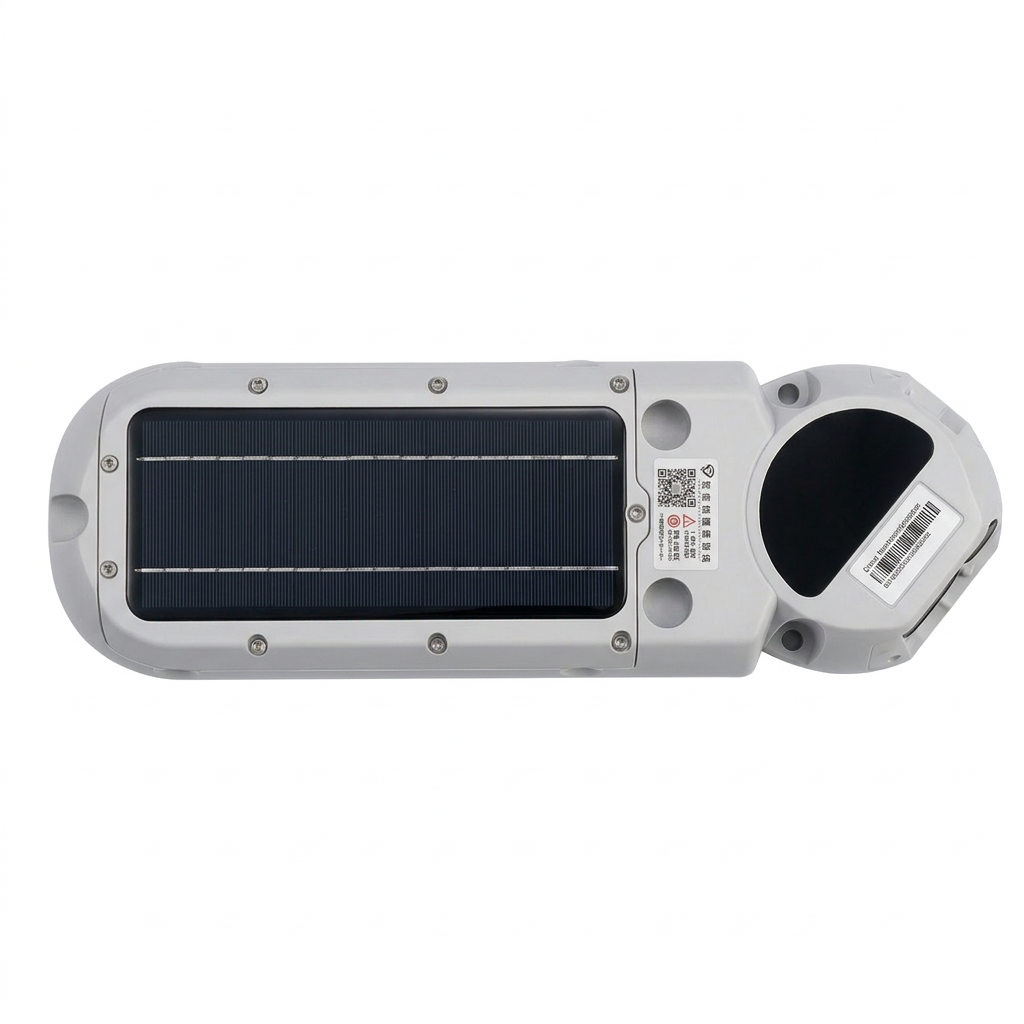

WEP-16 — Three-Quarter View · Full AssemblyWEP-16 — Front · Camera & Sensor ArrayWEP-16 — Top Down · Solar Panel & ID LabelWEP-16 — Iso View · Horizontal Profile
01Three-Quarter View · Full Assembly04

Next-generation horizontal-mount smart parking sensor with professional-grade 1080p CMOS sensor, 160° wide-angle all-glass HD lens, and 52KHz ultrasonic vehicle detection. Built-in 4G network, solar charging, and automatic lens cleaning wiper — no wiring, no road breaking required.

160° Wide-Angle HD All-Glass Lens
2MP CMOS GC2093 Sensor
4G Network (eSIM Dual-SIM)
52KHz Ultrasonic Detection
IP68 Waterproof Rating
Solar Charging (2.6W Panel)
Auto Day/Night Switching
IR-CUT Dual Filter
Auto Lens Cleaning Wiper
AI License Plate Recognition 99%+

Key Advantages

  • Ultra-low 38mm profile — fits curbed, curbless, vertical & angled spaces
  • Streamlined anti-collision design prevents tire scraping
  • Full metal body with IP68 impact-resistant protection
  • No road breaking, no wiring, no traffic disruption during installation
  • 27,200mAh battery + solar for extended autonomous operation
  • Contactless payment, unmanned parking management
  • Multi-channel payment via WeChat, Alipay & apps
  • Web dashboard for real-time space utilization & revenue tracking

Technical Specifications

Model
WEP16 (Horizontal)
Dimensions
390 × 95 × 38mm
Material
Alloy + Silicone
Camera Angle
161° Diagonal / 144° H / 81° V
Image Sensor
2MP CMOS GC2093
Resolution
Max 1280 × 720 JPG
Ultrasonic Range
0 ~ 2800mm
Communication
4G eSIM (Dual-SIM)
Protocol
TCP/IP
Protection
IP68
Battery
27,200mAh / 100Wh
Solar Panel
5V / 2.6W ±5%
Working Temp
-30°C ~ 70°C
Humidity
10% ~ 90%
Altitude
Below 4,500m
Storage Temp
-40°C ~ 75°C
Consumer Mobile Application

5 Major Supported Functions

One-stop service with multiple windows — APP, Mini Program, Digital Wallet & more.

Active Module
Find Parking Space

Real-time availability search across all connected parking zones

SYS//ARCH.v4
NODES · 1,204 ACTIVE
Architecture

City Smart Parking Platform

Three Major Dimensions
Solving Urban Parking Difficulties
Government Oversight
Parking Services
Driver Services
Public Services
Mini-Programs / Apps / Official Accounts
Operational Management
Operator Dashboards & Tools
Comprehensive Management
City-wide Oversight & Reporting
Smart City Parking Cloud
IoT Platform
Network Security & Protection
Big Data / AI
Traffic Cloud Infrastructure
Integrated Parking Management
Real-Time Data Visualization
Connected Parking Operation
IoT Access Layer
On-Street Parking
Public Parking Lots
Multilevel Parking
New Energy Charging Piles
Urban Parking Guidance
Consultation

Ready to deploy
smart parking?

Contact us for product specifications, pricing, and deployment support.
